【侧发光筒灯】

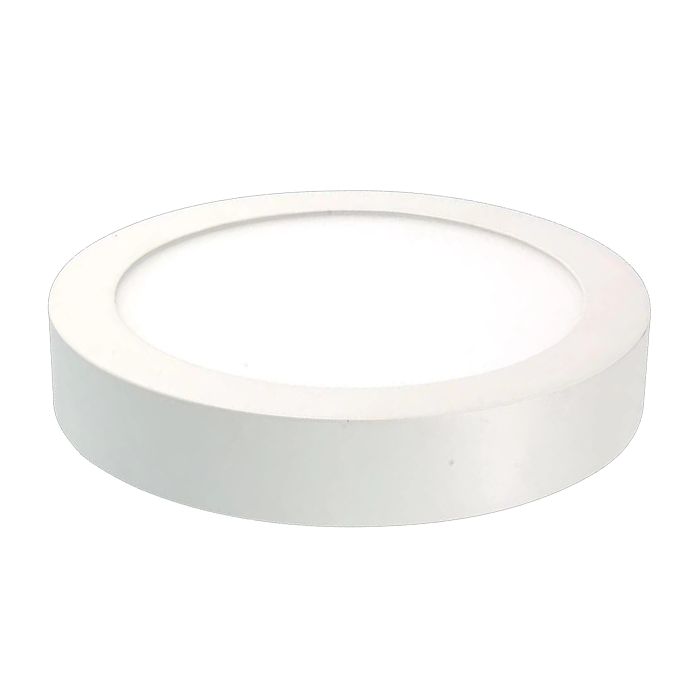

明装圆形 侧发光筒灯
| Item NO. | Circular | Circular | Circular | Circular | |
| Specification | |||||
| Texture | ADC12 die casting aluminium alloy | ADC12 die casting aluminium alloy | ADC12 die casting aluminium alloy | ADC12 die casting aluminium alloy | |
| Size（mm） | φ110*28mm | φ160*28mm | φ210*28mm | φ285*28mm | |
| Hole Size | / | / | / | / | |
| Power | 6W | 12W | 18W | 24W | |
| Voltage | AC100-265V | AC100-265V | AC100-265V | AC100-265V | |
| Hertz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Power Type | Isolated/Non-isolated | Isolated/Non-isolated | Isolated/Non-isolated | Isolated/Non-isolated | |
| PF | 0.5 | 0.5 | 0.5 | 0.5 | |
| CRI | 80 | 80 | 80 | 80 | |
| Lumens | 330lm | 720lm | 1250lm | 1680lm | |
| Beam Angle | 120 | 120 | 120 | 120 | |
| CCT | 3000&4000&6500K | 3000&4000&6500K | 3000&4000&6500K | 3000&4000&6500K | |
| QTY per carton | 50 | 40 | 30 | 20 | |
| Pack Size | Length | 32 | 37 | 55.5 | 60 |
| Width | 38 | 34 | 45 | 37 | |
| Height | 13 | 35.5 | 23 | 31 | |
| MOQ | pcs | 2000 | 2000 | 2000 | 2000 |
| EXW price | |||||
| Life hours | 15000h | 15000h | 15000h | 15000h | |
| Warranty | 2 years | 2 years | 2 years | 2 years | |
